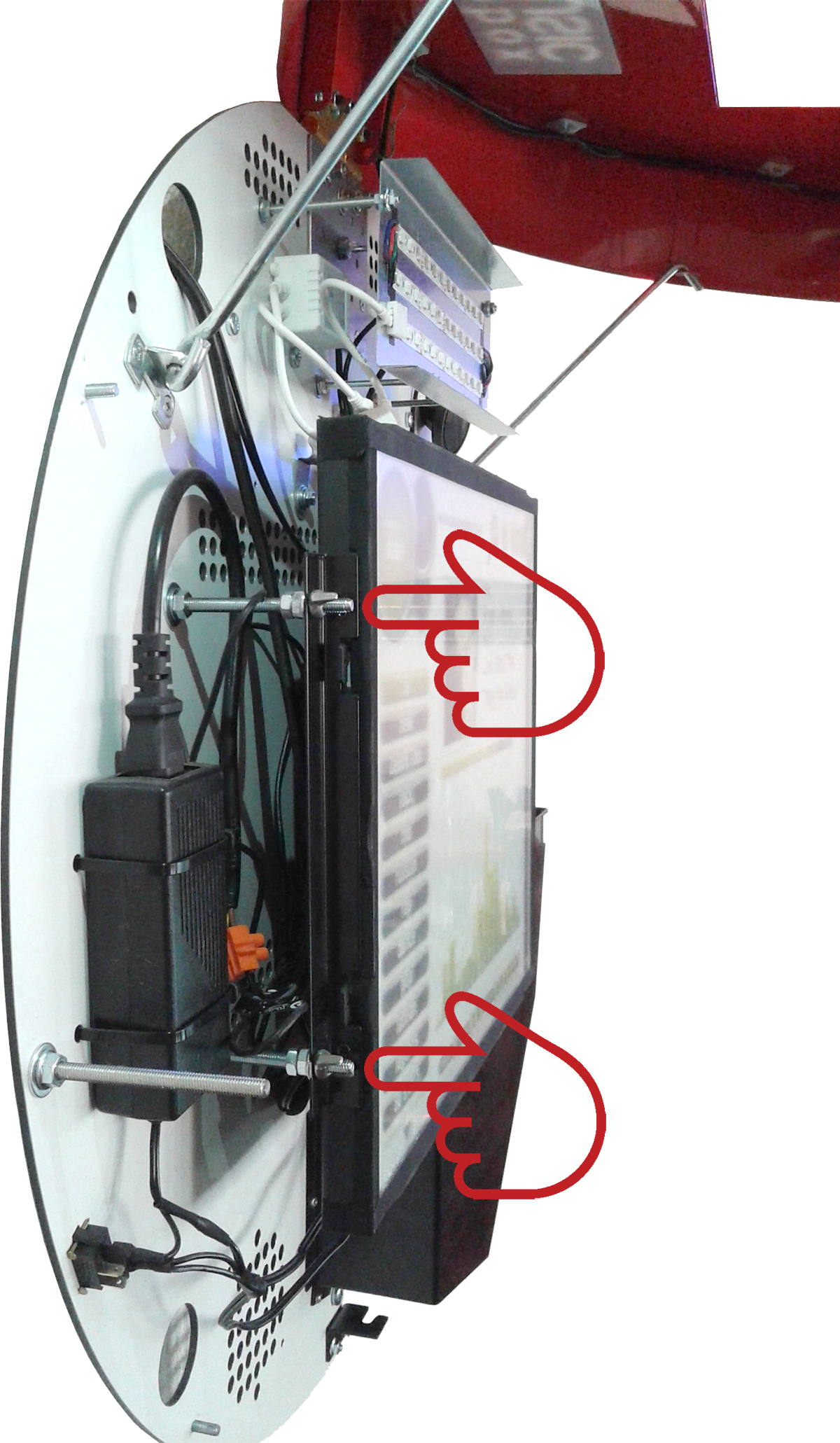

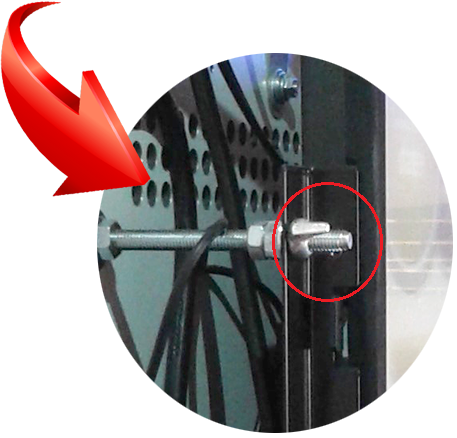

Step 1. Remove All-in-One PC with aluminium  fixings

Step 2.  Disconnect cables and remove All-in-One PC from zeBox

Step 3.  Reconnect cables to All-in-One PC. Please connect following connectoors:

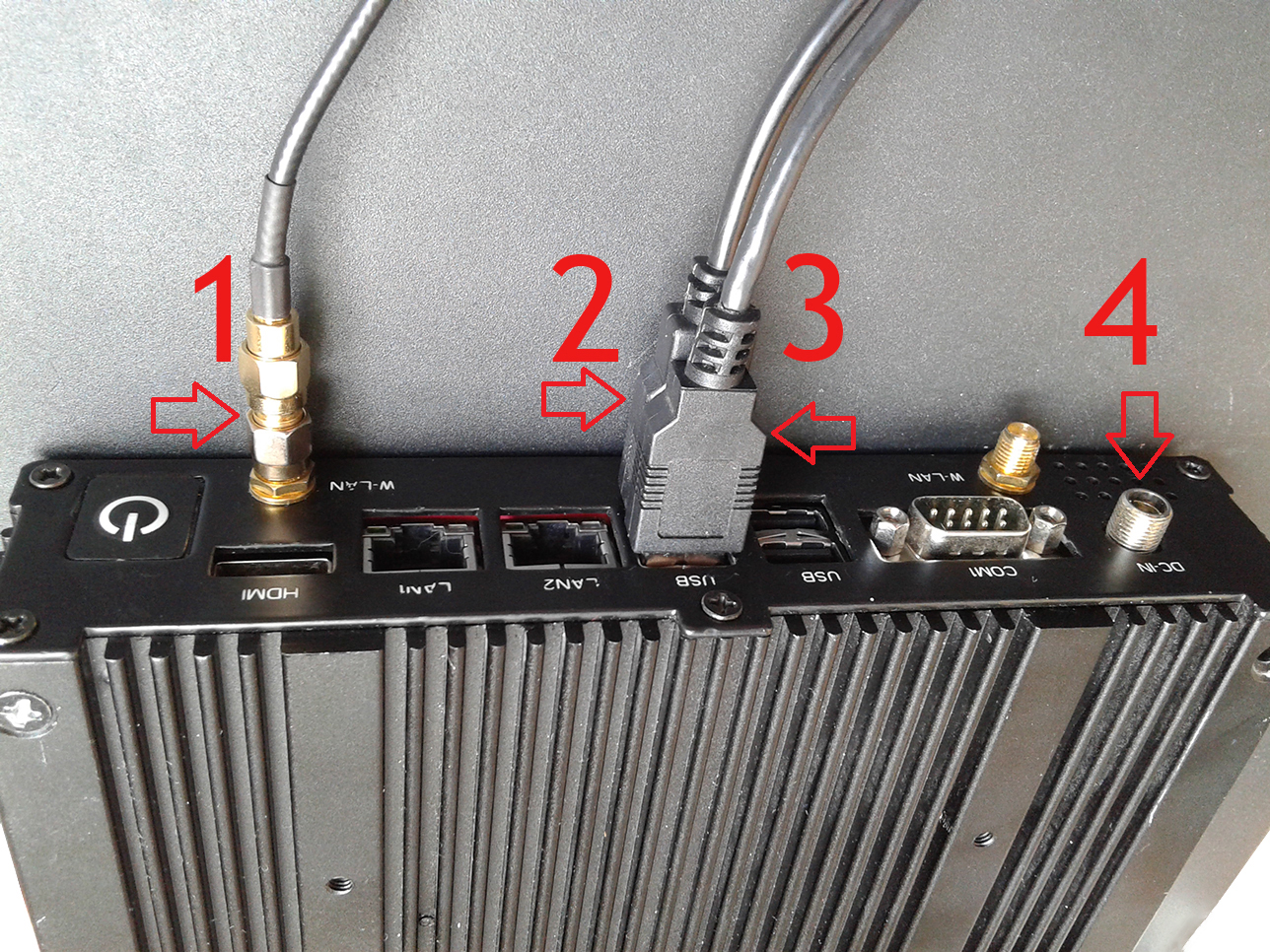

Option 1

1) WiFi antena connector

3) Web camera USB connector

4) Coin acceptor USB connector

5) Power supply connector

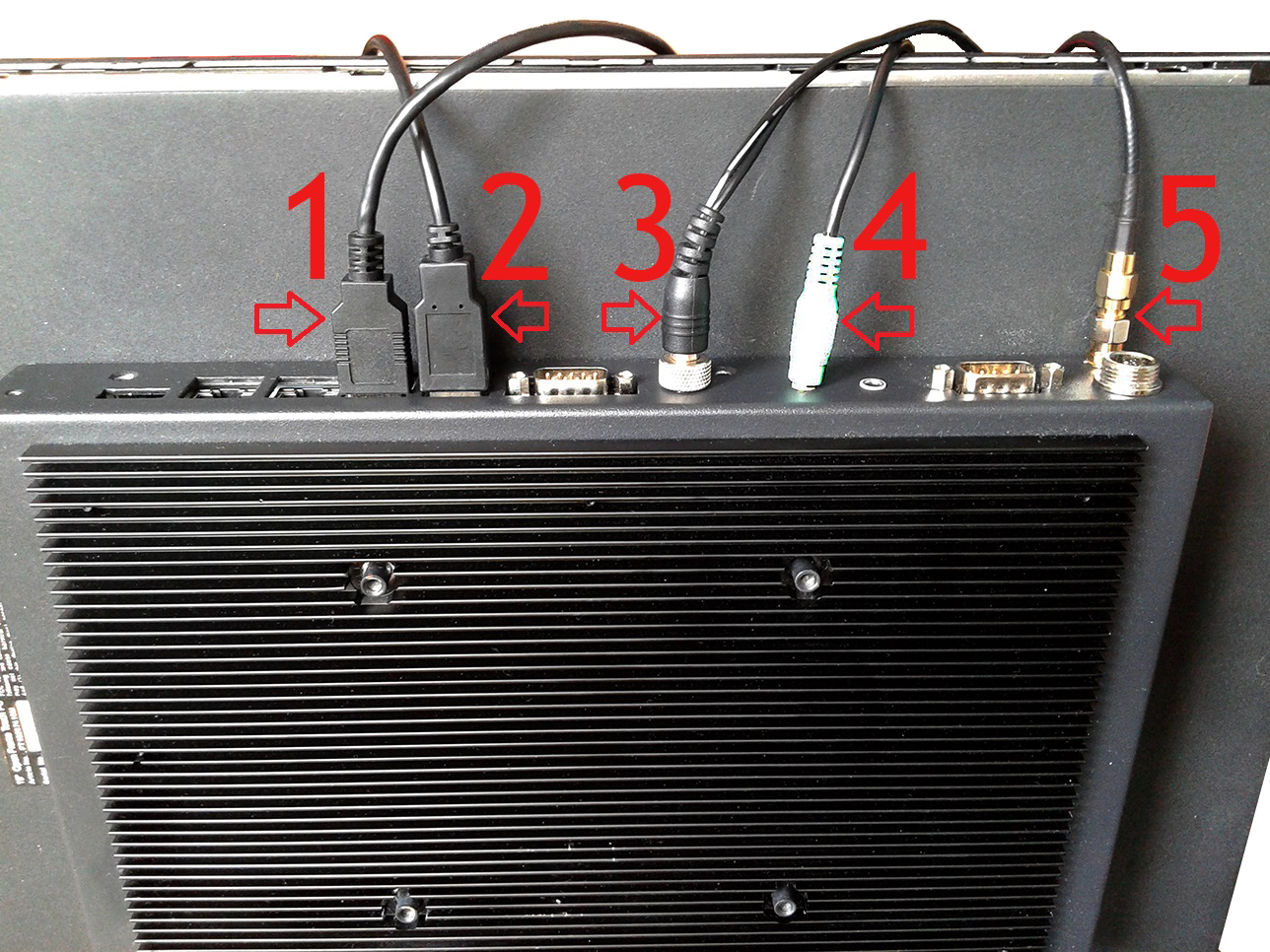

Option 2

1) Coin acceptor USB connector

2) Web camera USB connector

3) Power supply connector

4) Audio output cable (green jack)

5) WiFi antena connector



P.S

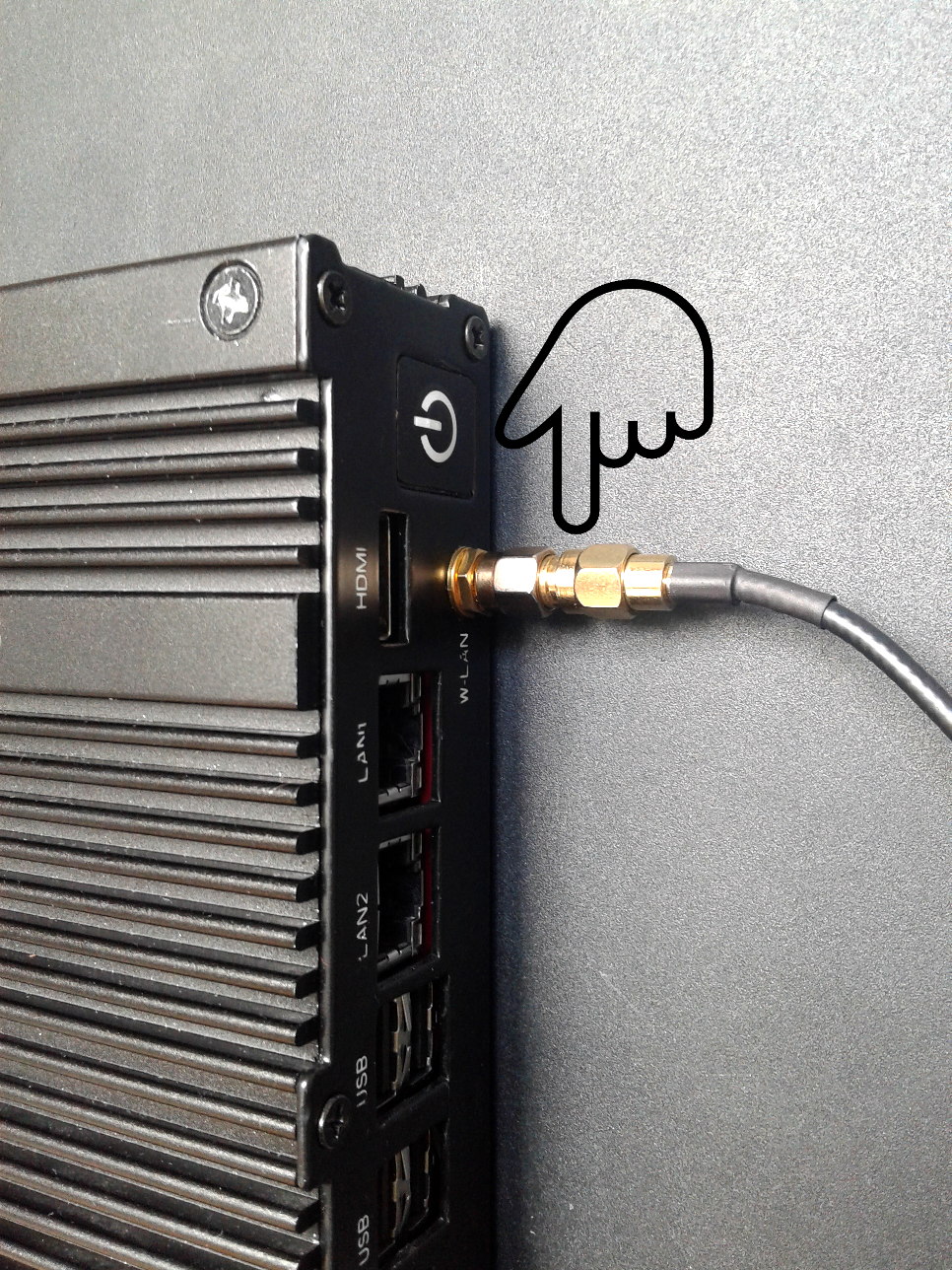

For Wi-Fi to work properrly the middle gold plated extender is obligatorily to be used and is mandatory for good signal and connection speed
