Step 1. Find best place in the pub for ZeBox. It should be as close to the bar as possible. ZeBox diameter is 68 cm. Middle of zeBox screen should be 1.50 m from the ground.

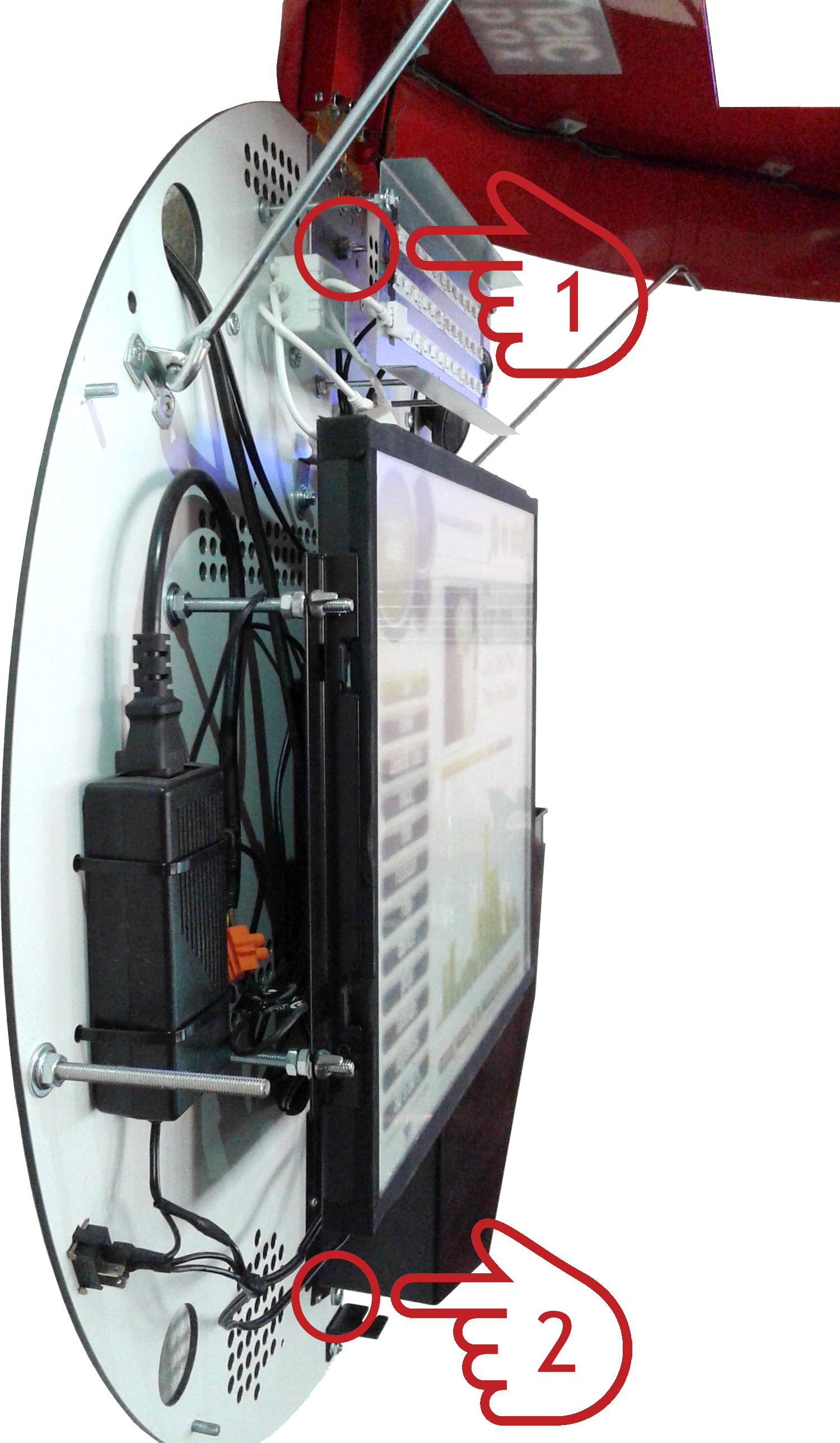

Step 2. To remove/fix wall mounting bracket, please release top and bottom screws

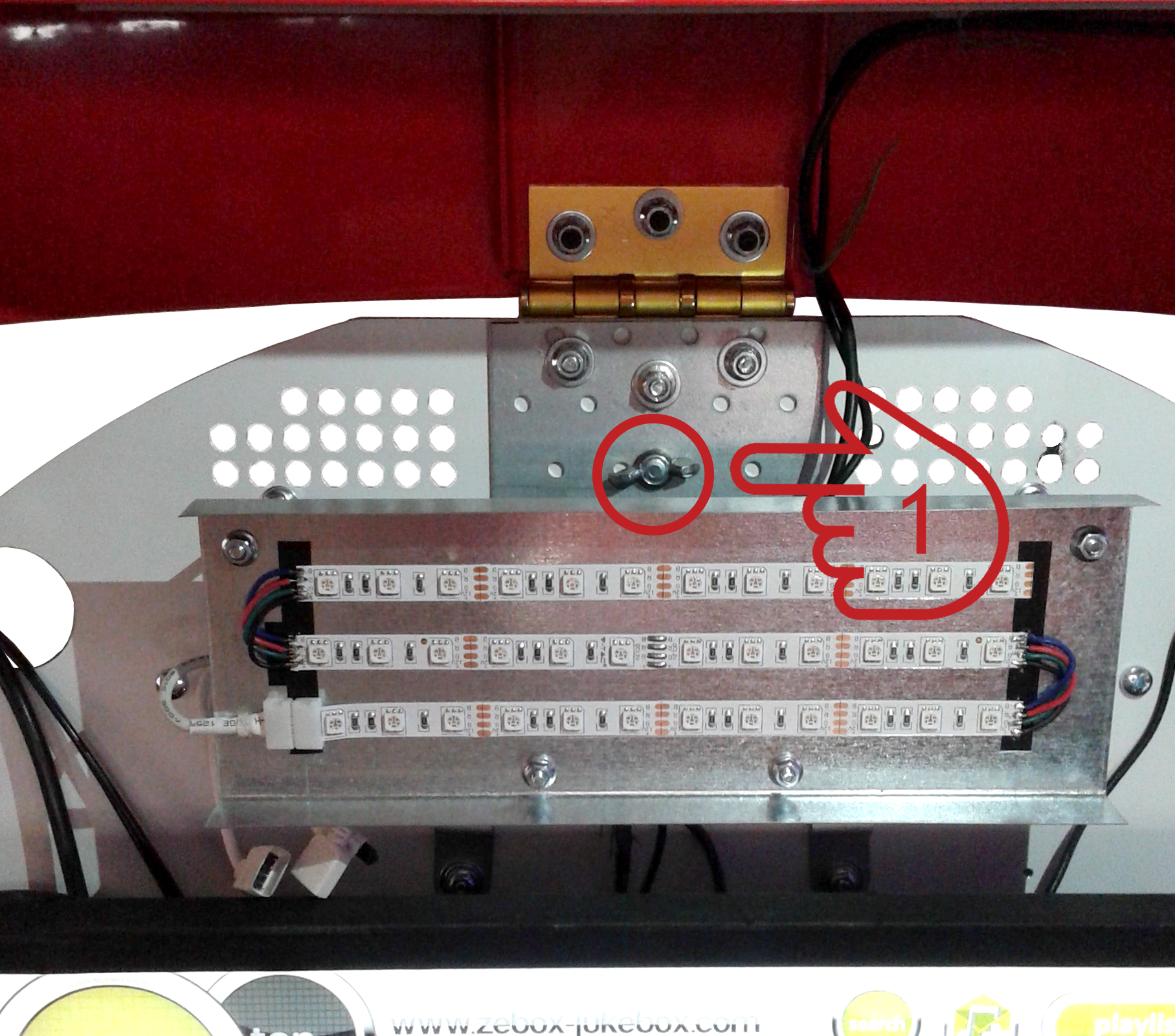

Top screw

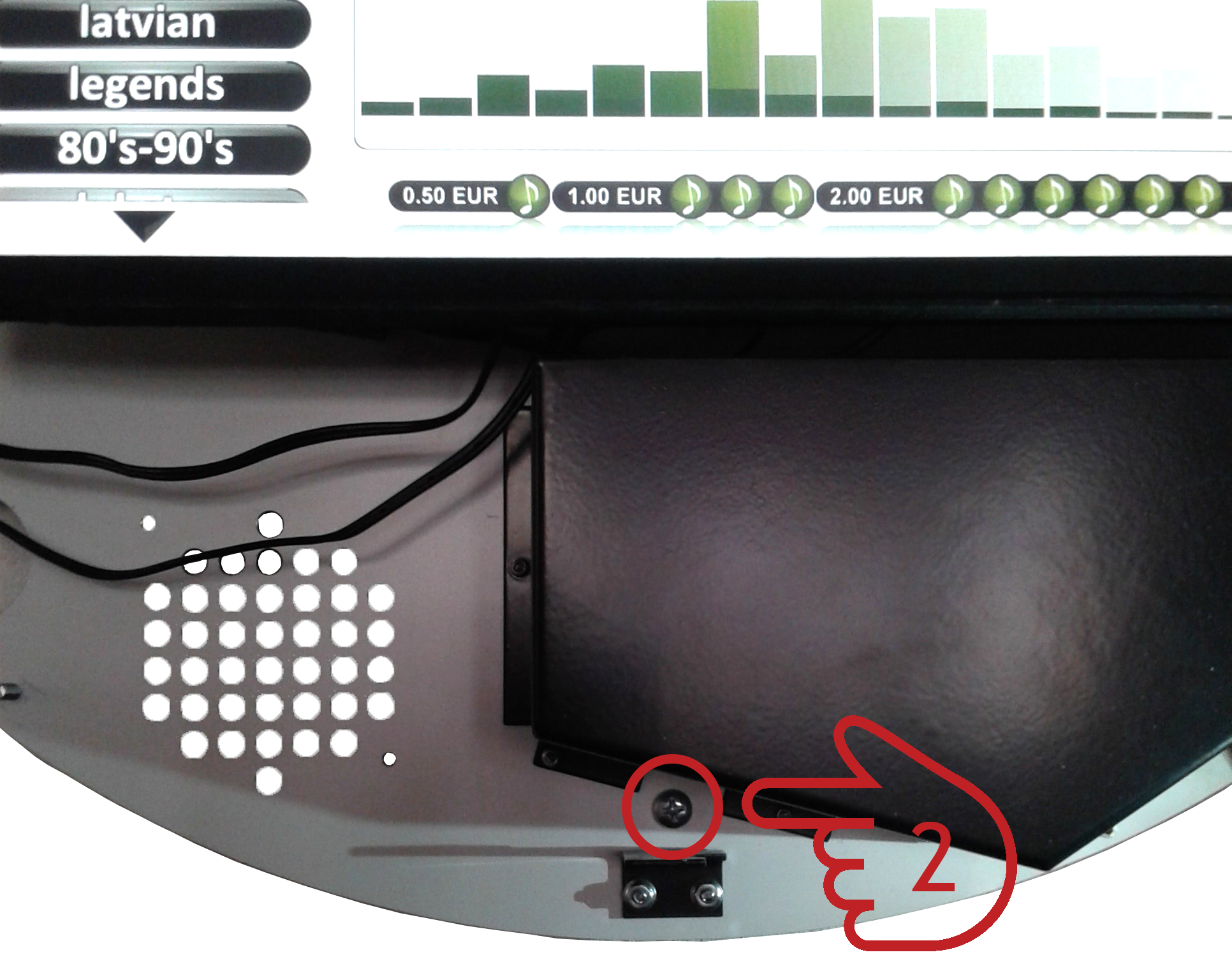

Bottom screw

Step 3. To fix the wall mounting bracket, use following screws:

1) for wood. Use standart wood screws with maximum diamter of 6mm

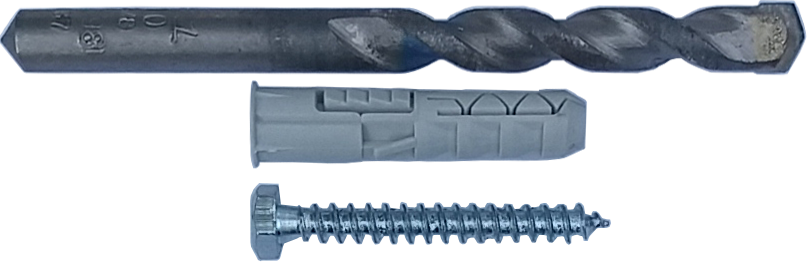

2) For concrete. Drill 10mm for concrete, Dowel 10x50-60mm, Screw 6x50mm

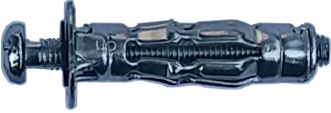

3) For plaster 50mm.

Step 4. To fix open front frame use side metal supports

On/off switch is located on left bottom side of ZeBox
